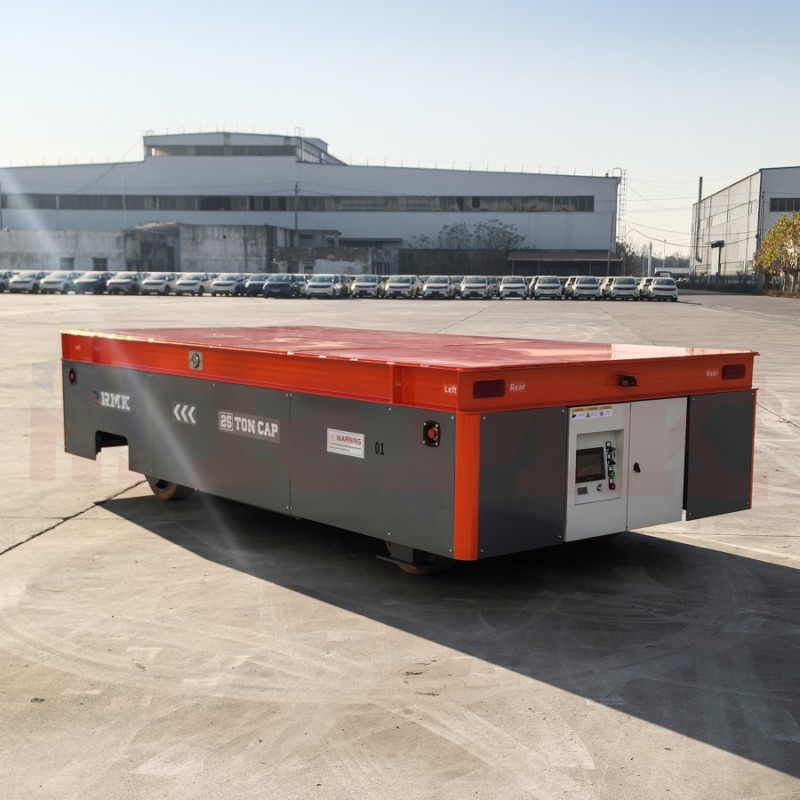

Thauj Khoom Hnyav 25 Tons Battery Lifting Tsis Siv Rail Hloov Cav

Cov Thauj Khoom Hnyav 25 Tons Battery Lifting Tsis Siv Rail Hloov Cav tau customized rau ib tug American tus neeg siv khoom los ntawm Henan Remarkable, tuaj yeem txav mus pem hauv, rov qab, tig sab laug, tig sab xis, tig 360 tug kauj ruam sab laug thiab sab xis, thiab tig thaum mus. Cov fais fab muab txoj kev yog lithium battery lossis lead-acid battery, uas yooj yim rau cov neeg siv khoom kuaj thiab kho. Peb tau tsim cov tag nrho platform lifting rau ob lub tsheb no. Cov hnyav tsis siv rail tsheb haum rau cov thauj khoom ntawm cov concrete, cov metallurgical kev lag luam, molded thauj khoom, ncej nkoj, aerospace, cov khoom rog thauj khoom, thiab lwm yam.

Cov technical specifications tseem ceeb ntawm cov battery tsis siv rail thauj cav:

Hom:RWP-25T

Roj qhov ntev(mm):4000*2000 *900

Log khoom:Polyurethane roj hmab log

Fais fab muab hom: Tsis xav kho lead-acid battery

Ua haujlwm hom: Remote Control+Hand Pendant

Differential steering tsis siv rail thauj tsheb ua haujlwm hom

Cov hauv paus ntawm differential steering tsis siv rail tsheb yog ua tiav cov steering los ntawm cov ceev sib txawv ntawm sab laug thiab sab xis drive wheels, yam tsis muaj steering wheels. Nws haum rau cov khoom thauj hnyav thiab cov ceev tsawg ua haujlwm xwm txheej thiab yog cov kev daws teeb meem tseem ceeb rau cov industrial khoom thauj hnyav.
1. Mus ncaj qha kab
Cov sab laug thiab sab xis drive wheels txav ntawm ib tug ceev thiab taw qhia, thiab lub tsheb txav nyob rau hauv ib tug kab ncaj qha, ua kom haum rau kev thauj khoom deb.
2. Arc tig (tsis-zero radius)
Cov sab laug thiab sab xis cov log txav nyob rau hauv lub tib taw qhia ntawm cov ceev sib txawv, nrog cov sab hauv log luv dua thiab cov sab nraud log ceev dua. Lawv ua ib tug circular kev txav mus los nyob rau hauv ib ncig ntawm cov ICR, haum rau cov channel tig thiab cov workstation kho.
3. Tig nyob qhov chaw (zero radius)
Cov sab laug thiab sab xis cov log nyob rau hauv lub sij hawm ceev thiab rov qab taw qhia, nrog cov ICR nyob rau hauv lub nruab nrab ntawm lub tsheb, ua tiav ib tug 360 ° tig nyob qhov chaw thiab cov kev tswj hwm zoo hauv ib tug me me chaw.
